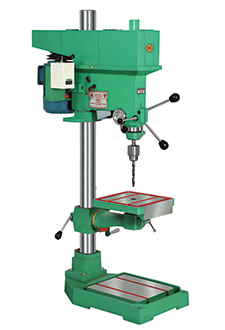

The K.M.PANCHAL Pillar Drill is an ideal machine for the demanding precision drilling. This robust column drill press is equipped with an Electric Motor of 1 horse power and 8 different speed settings, with a minimum speed of 86 RPM and maximum speed of 3360 RPM!
PA-DRILL's Pillar Drilling Machine allows you to achieve the best drilling results with materials such as Mild Steel, Stainless Steel, Brass, Copper, Alloy Steel, Aluminum and Cast Iron. Use the keyed chuck to securely fasten different types of drills (max. drill bit-Ø: 20 mm). The V-belt drive is on top of the machine, well protected in a metal housing. 4 Speeds are directly driven on four-step pulley and another 4 speed by engaging gear with the Spindle Pulley.
The worktable (270 x 270 mm) is adjustable in height with Rack-Pinion Arrangement. In addition, the drilling depth stop allows you to determine how deep the drill should go in the material. Since the base plate is equipped with screw holes, you can easily attach the pillar drill to your workbench.
| PARAMETER | SPECIFICATION |
| MODEL NO. | 19KCR(NEW) |
| BRAND | K.M.PANCHAL |
| DRILLING CAP. IN STEEL | 20 mm |
| DRILLING CAP. IN C. I. | 23 mm |
| TAPPING CAP. IN STEEL | M13 |
| SPINDLE TAPER | MT2 |
| SPINDLE SPEED (RPM) | 86, 154, 260, 460 617, 1100, 1880, 3360 |
| NO. OF SPINDLE SPEED | 8 |
| SPINDLE TRAVEL | 150 mm |
| TYPE OF FEED | MANUAL |
| DIA. OF COLUMN/ LENGTH OF COLUMN | 73.80 mm / 1220 mm |
| MAX. DIST. BET. SPINDLE CENTER TO COLUMN FACE | 150 mm |
| MAX. DIST. BET. SPINDLE NOSE TO TABLE | 600 mm |
| MAX. DIST. BET. SPINDLE NOSE TO BASE PLATE | 920 mm |
| UP-RIGHT TRAVEL OF WORKING TABLE | 250 mm |
| SIZE OF WORKING TABLE | 270 x 270 mm |
| SLOT SIZE IN WORKING TABLE | 7/16'' |
| SIZE OF BASE PLATE | 530 x 350 mm |
| SIZE OF 'T' SLOT IN BASE PLATE | 7/16'' |
| WORKING SURFACE OF BASE PLATE | 300 x 260 mm |
| ELECTRIC MOTOR | 1 HP/1440 RPM |
| V-BELT SIZE | A44 |
| WEIGHT OF MACHINE (KG) | 130 |
| OVERALL DIMENSION OF MACHINE (H X W X L) | 1300 x 390 x 700 mm |
| WOODEN BOX DIMENSION (H X W X L) |
SPECIFICATION MAY BE CHANGED WITHOUT PRIOR NOTICE IN CASE OF DESIGN MODIFICATION
