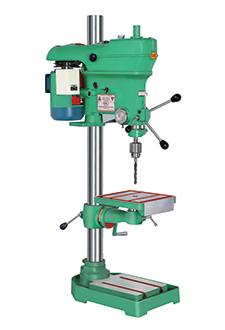

The K.M.PANCHAL Pillar Drill is an ideal machine for the demanding precision drilling. This robust column drill press is equipped with an Electric Motor of 1 horse power and 8 different speed settings, with a minimum speed of 86 RPM and maximum speed of 3360 RPM!

PA-DRILL's Pillar Drilling Machine allows you to achieve the best drilling results with materials such as Mild Steel, Stainless Steel, Brass, Copper, Alloy Steel, Aluminum and Cast Iron. Use the keyed chuck to securely fasten different types of drills (max. drill bit-Ø: 20 mm). The V-belt drive is on top of the machine, well protected in a metal housing. 4 Speeds are directly driven on four-step pulley and another 4 speed by engaging gear with the Spindle Pulley.

The worktable (270 x 270 mm) is adjustable in height with Rack-Pinion Arrangement. In addition, the drilling depth stop allows you to determine how deep the drill should go in the material. Since the base plate is equipped with screw holes, you can easily attach the pillar drill to your workbench.

Features:

PARAMETERSPECIFICATION
MODEL NO.19KCR
BRANDK.M.PANCHAL
DRILLING CAP. IN STEEL20 mm
DRILLING CAP. IN C. I.23 mm
TAPPING CAP. IN STEELM13
SPINDLE TAPERMT2
SPINDLE SPEED (RPM)86, 154, 260, 460
617, 1100, 1880, 3360
NO. OF SPINDLE SPEED8
SPINDLE TRAVEL125 mm
TYPE OF FEEDMANUAL
DIA. OF COLUMN/ LENGTH OF COLUMN73.80 mm/ 1220 mm
MAX. DIST. BET. SPINDLE CENTER TO COLUMN FACE125 mm
MAX. DIST. BET. SPINDLE NOSE TO TABLE665 mm
MAX. DIST. BET. SPINDLE NOSE TO BASE PLATE930 mm
UP-RIGHT TRAVEL OF WORKING TABLE250 mm
SIZE OF WORKING TABLE270 x 270 mm
SLOT SIZE IN WORKING TABLE7/16''
SIZE OF BASE PLATE520 x 340 mm
SIZE OF 'T' SLOT IN BASE PLATE7/16''
WORKING SURFACE OF BASE PLATE290 x 260 mm
ELECTRIC MOTOR1 HP/1440 RPM
V-BELT SIZEA43
WEIGHT OF MACHINE (KG)105
OVERALL DIMENSION OF MACHINE (H X W X L)1300 x 390 x 630 mm
WOODEN BOX DIMENSION (H X W X L)

SPECIFICATION MAY BE CHANGED WITHOUT PRIOR NOTICE IN CASE OF DESIGN MODIFICATION
